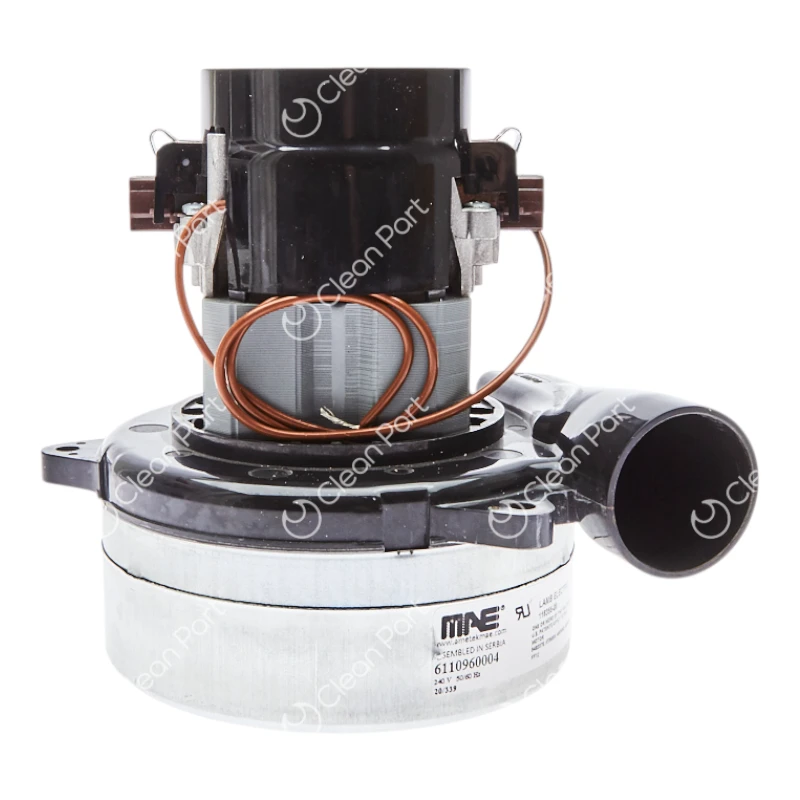

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1225 Watt]](https://demo.cleanpart.se/wp-content/uploads/116355-00-1.webp)

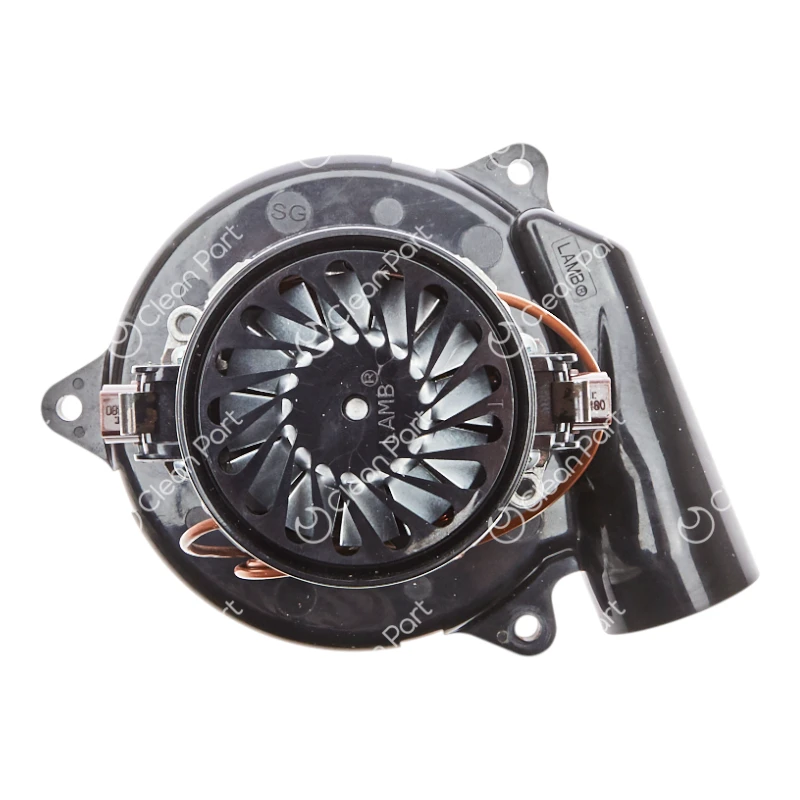

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1225 Watt] - Image 2](https://demo.cleanpart.se/wp-content/uploads/116355-00-2.webp)

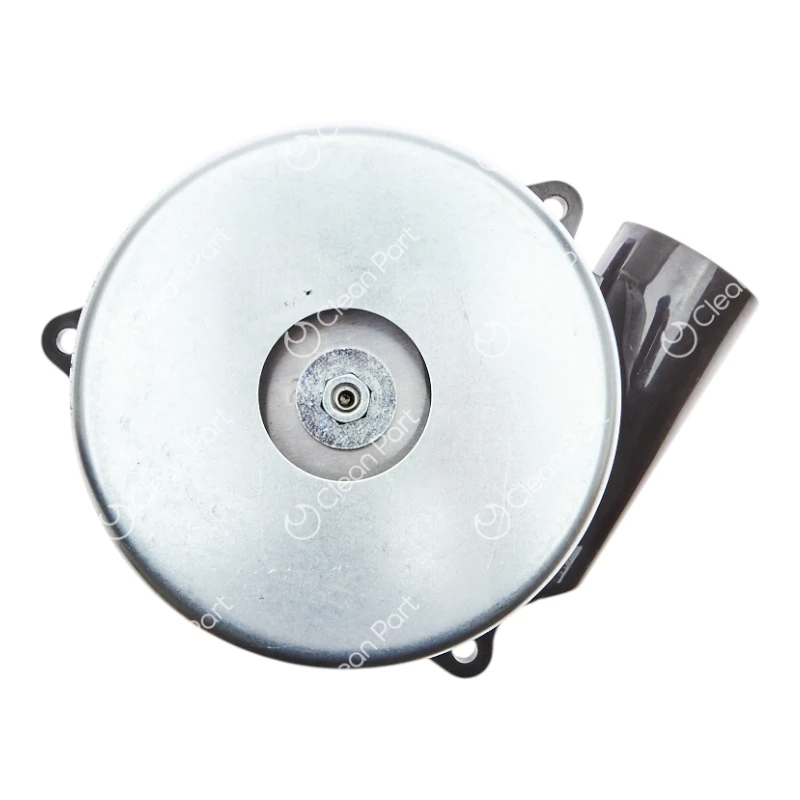

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1225 Watt] - Image 3](https://demo.cleanpart.se/wp-content/uploads/116355-00-3.webp)
Cleanfix RA480 E
Fimap Gamma 35 E
Fimap Gamma 45 E
Fimap Gamma 50 E
Hako Hakomatic E35 (Cylindrical - 350mm)
Hako Hakomatic E40 (Cylindrical - 400mm)
Hako Hakomatic E43 (Disc - 430mm)
Hako Hakomatic E53 (Disc - 530mm)
Nilfisk Advance CA 551
Tennant E5
| Brands | Ametek Lamb Electric |
|---|---|
| Type | Tangential By Pass |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1225 Watt |
| Steps | 2 |
| Max RPM | 24925 |
| Discharge type | Exhaust pipe |
| Height total height (mm) | 179 mm |
| Height turbine housing (mm) | 72 mm |
| Diameter turbine house (mm) | 144 mm |
| Diameter fan housing (mm) | 79 mm |
| Width carbon brushes (mm) | 120.4 mm |
| Diameter exhaust pipe OD (mm) | 48 mm |
| Diameter exhaust pipe ID (mm) | 43 mm |
| Cables On Motor | Yes |
| Cable Connectors | No connectors |
| Mounting holes | 3 |
| Height mounting holes (mm) | 56 mm |
| Carbon brush no | 33378 |
| Size - Intake pipe (mm) | (-) |
| OEM | 00670800 (Hako), 00980340 (Hako), 116355-00, 6110960004, 90304593 (Hako) |
