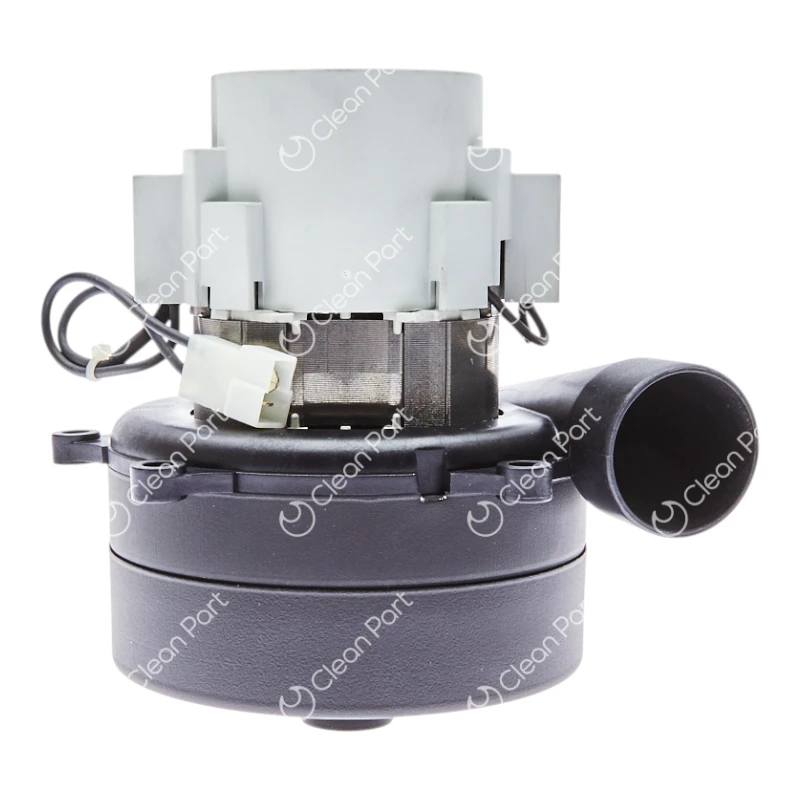

![Vacuum motor - EMB [24 Volt] [178 Watt]](https://demo.cleanpart.se/wp-content/uploads/30245-1.webp)

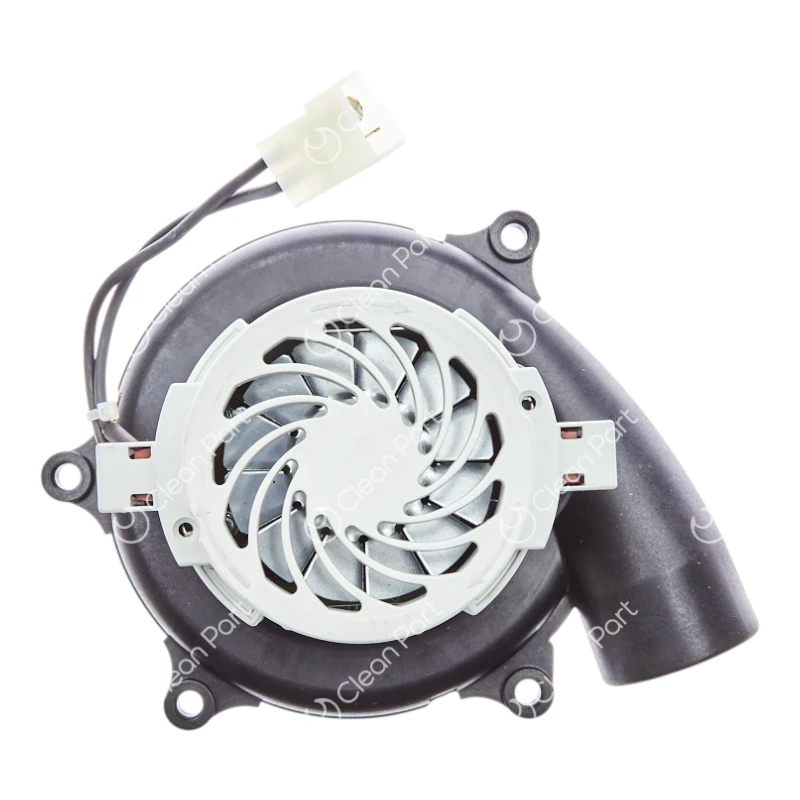

![Vacuum motor - EMB [24 Volt] [178 Watt] - Image 2](https://demo.cleanpart.se/wp-content/uploads/30245-2.webp)
![Vacuum motor - EMB [24 Volt] [178 Watt] - Image 3](https://demo.cleanpart.se/wp-content/uploads/30245-3.webp)
Adiatek Baby
Adiatek Baby 43
Adiatek Baby Plus
| Brands | EMB |
|---|---|
| Type | Tangential By Pass |
| Current | DC |
| Volt | 24 Volt |
| Watt | 178 Watt |
| Steps | 2 |
| Max RPM | 11880 |
| Discharge type | Exhaust pipe |
| Height total height (mm) | 173 mm |
| Height turbine housing (mm) | 77 mm |
| Diameter turbine house (mm) | 144 mm |
| Cable Connectors | (-) |
| Cables On Motor | (-) |
| Diameter fan housing (mm) | (-) |
| Carbon brush no | (-) |
| Diameter exhaust pipe ID (mm) | (-) |
| Diameter exhaust pipe OD (mm) | (-) |
| Mounting holes | (-) |
| Height mounting holes (mm) | 62 mm |
| Size - Intake pipe (mm) | (-) |
| Width carbon brushes (mm) | (-) |
| OEM | 711250 |
