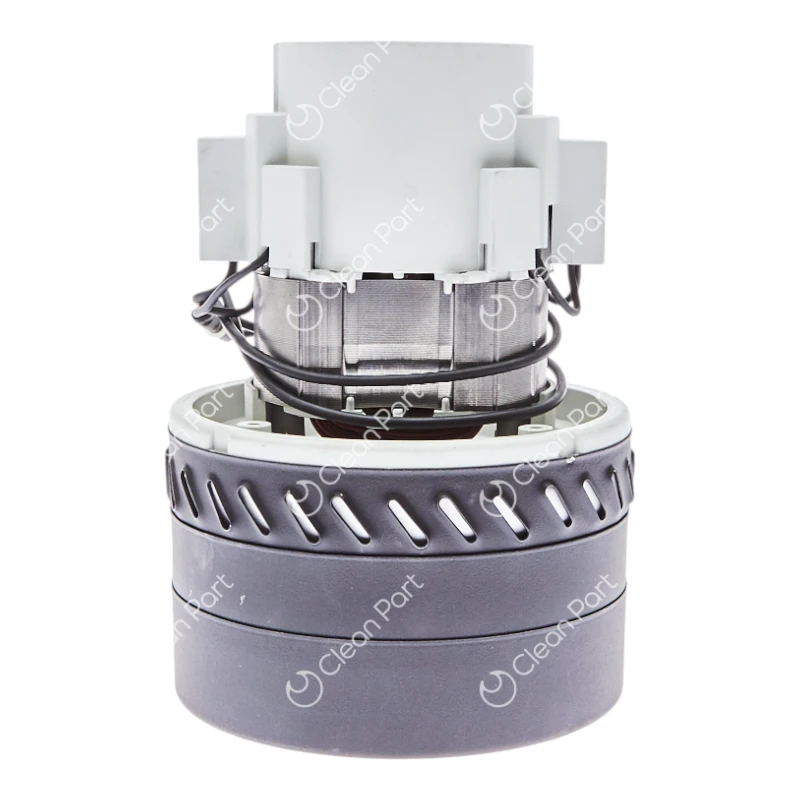

![Vacuum motor - EMB [36 Volt] [676 Watt]](https://demo.cleanpart.se/wp-content/uploads/30362-1.webp)

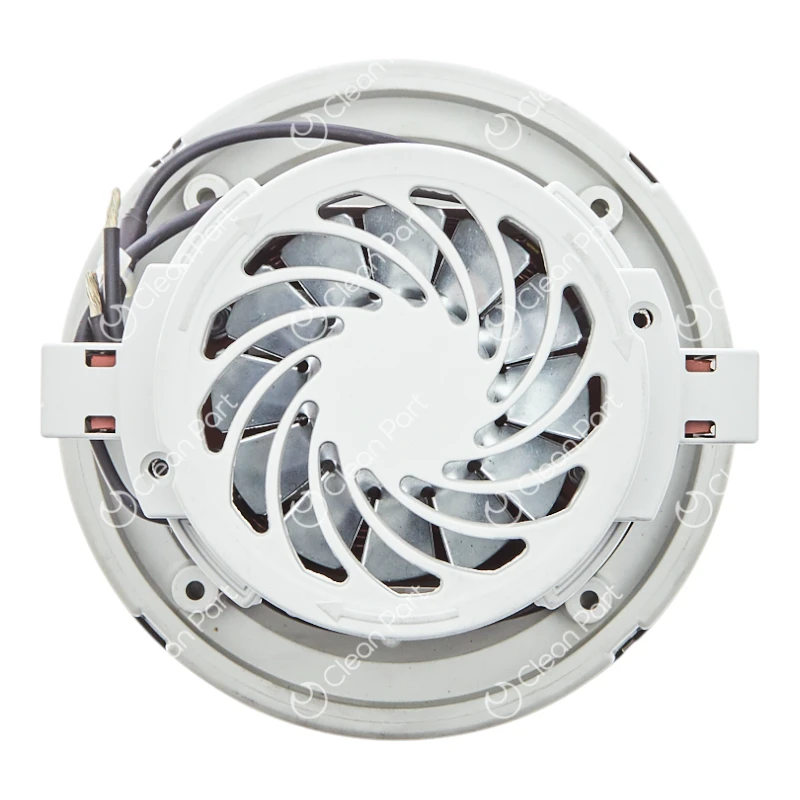

![Vacuum motor - EMB [36 Volt] [676 Watt] - Image 2](https://demo.cleanpart.se/wp-content/uploads/30362-2.webp)

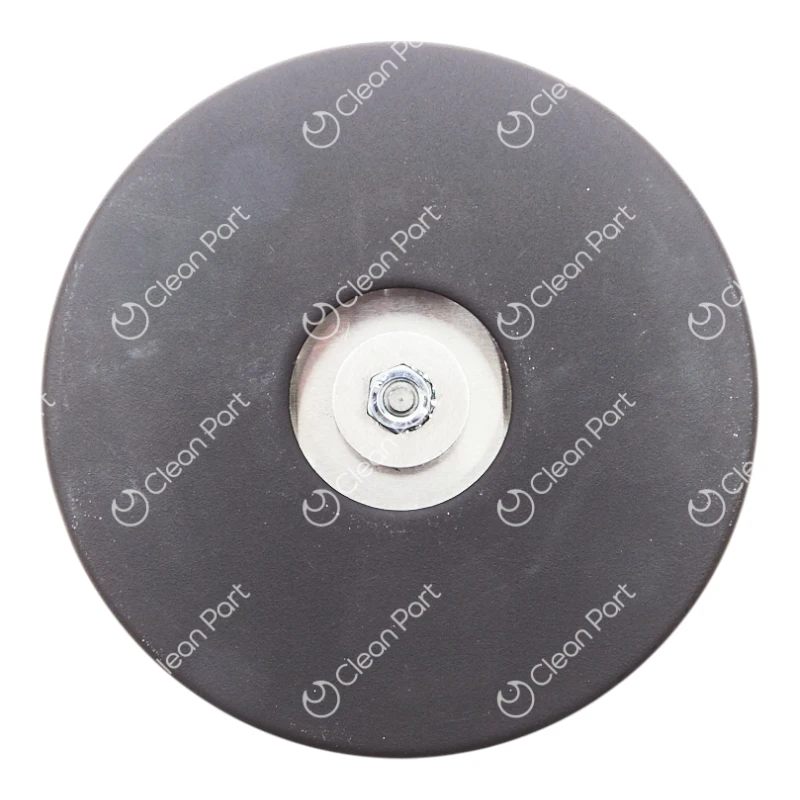

![Vacuum motor - EMB [36 Volt] [676 Watt] - Image 3](https://demo.cleanpart.se/wp-content/uploads/30362-3.webp)
Hako Hakomatic 1100 (Disc / Cyl - 530mm)
Hako Hakomatic 1100 (Disc/Cyl - 530mm)
Hako Hakomatic B1100 (Disc - 1020mm)
Hako Hakomatic B1100 (Disc - 1230mm)
Hako Hakomatic B1100 Flex (Disc - 1020mm)
Hako Hakomatic B1100 Flex (Disc - 530mm)
ICA CT30 B45
ICA CT30 B45 ECO
ICA CT30 B45 ECS
IPC CT30 B 45
IPC CT30 B 45 ECO
IPC CT30 B 45 ECS
| Brands | EMB |
|---|---|
| Type | Peripheral By Pass |
| Current | DC |
| Volt | 36 Volt |
| Watt | 676 Watt |
| Steps | 3 |
| Max RPM | 18140 |
| Discharge type | Gills |
| Height total height (mm) | 204.5 mm |
| Height turbine housing (mm) | 92 mm |
| Diameter turbine house (mm) | 144 mm |
| Cable Connectors | (-) |
| Cables On Motor | (-) |
| Diameter fan housing (mm) | (-) |
| Height mounting holes (mm) | (-) |
| Carbon brush no | (-) |
| Diameter exhaust pipe ID (mm) | (-) |
| Diameter exhaust pipe OD (mm) | (-) |
| Mounting holes | (-) |
| Size - Intake pipe (mm) | (-) |
| Width carbon brushes (mm) | (-) |
| OEM | 00911380 (Hako), 90310640 (Hako), S711356VR |
