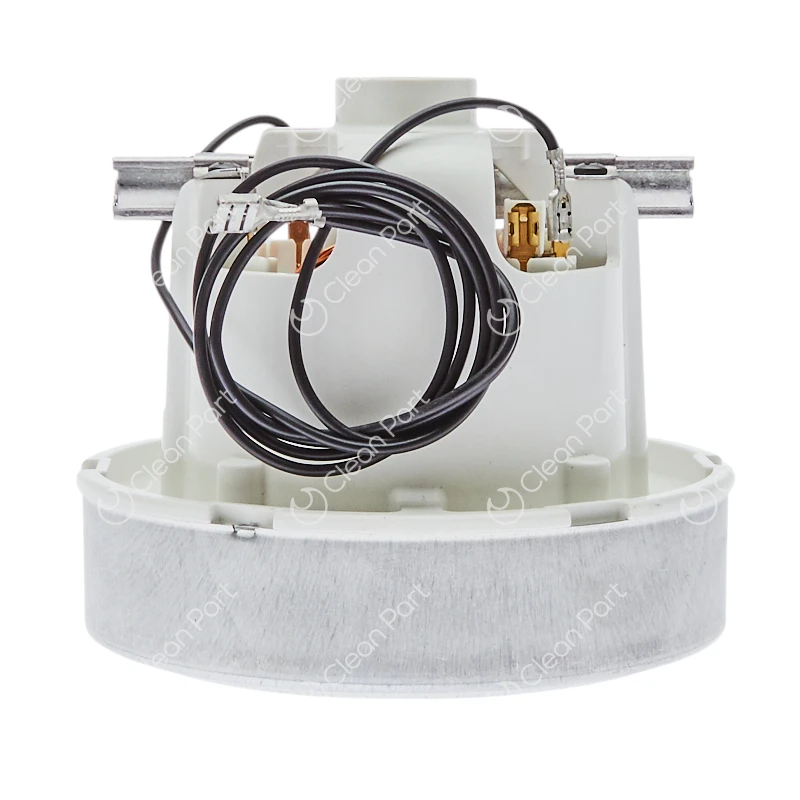

![Vacuum motor - Ametek [230 Volt] [1000 Watt]](https://demo.cleanpart.se/wp-content/uploads/850101-115-1.webp)

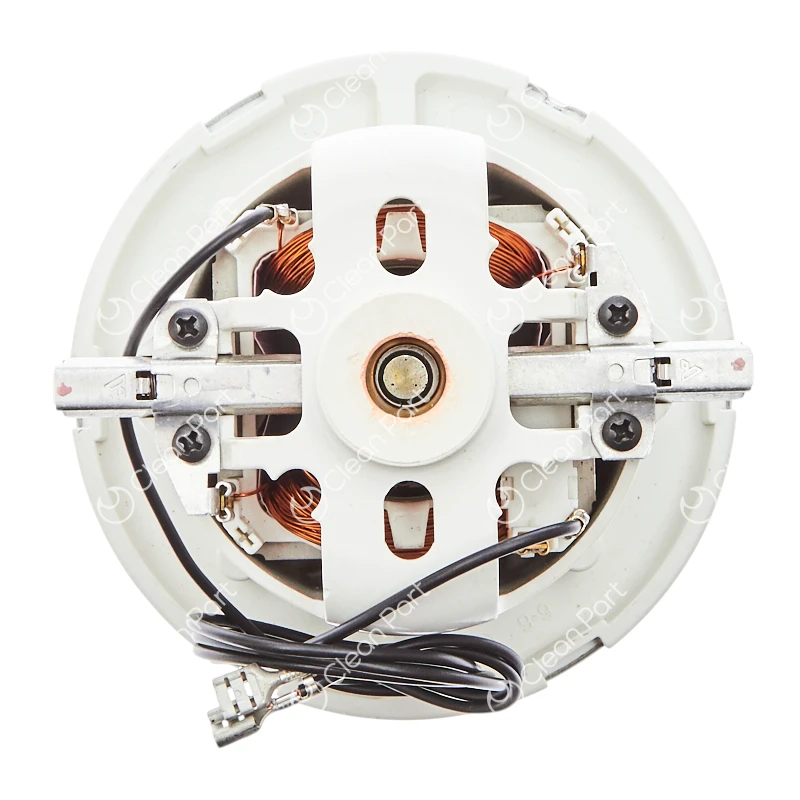

![Vacuum motor - Ametek [230 Volt] [1000 Watt] - Image 2](https://demo.cleanpart.se/wp-content/uploads/850101-115-2.webp)

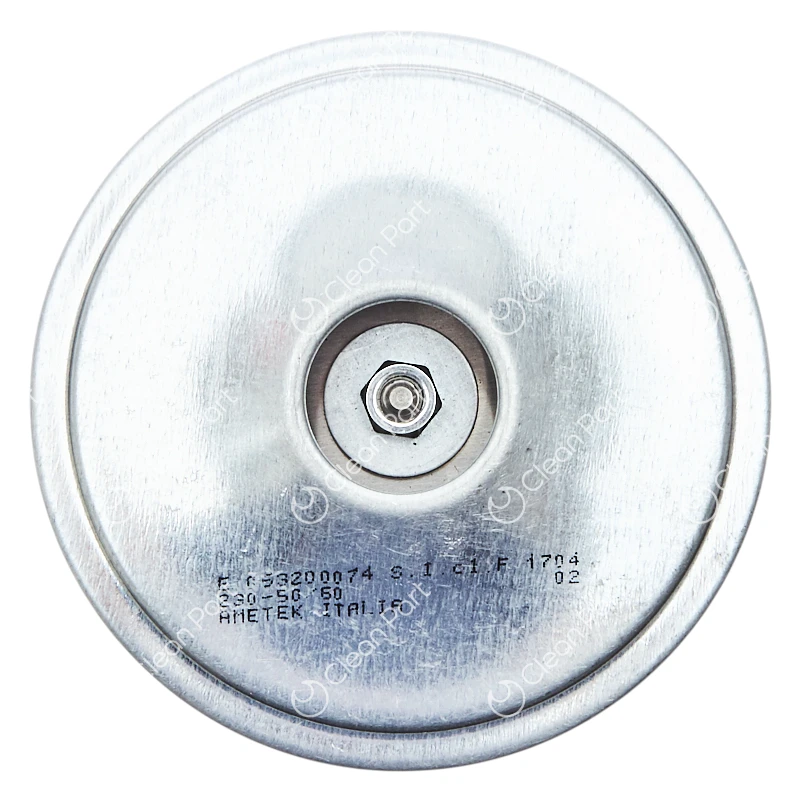

![Vacuum motor - Ametek [230 Volt] [1000 Watt] - Image 3](https://demo.cleanpart.se/wp-content/uploads/850101-115-3.webp)
| Brands | Ametek |
|---|---|
| Type | Thru Flow |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1000 Watt |
| Steps | 1 |
| Discharge type | Thru flow |
| Height total height (mm) | 120 mm |
| Height turbine housing (mm) | 44.5 mm |
| OEM | 063200060, 063200074, 063200172, 063200219, 6210820033 |
| Diameter turbine house (mm) | 130 mm |
| Cable Connectors | (-) |
| Cables On Motor | (-) |
| Diameter fan housing (mm) | (-) |
| Height mounting holes (mm) | (-) |
| Carbon brush no | (-) |
| Diameter exhaust pipe ID (mm) | (-) |
| Diameter exhaust pipe OD (mm) | (-) |
| Max RPM | (-) |
| Mounting holes | (-) |
| Size - Intake pipe (mm) | (-) |
| Width carbon brushes (mm) | (-) |
